Atlantis AX50 Regulator
Submarine - Atlantis AX50 Regulator

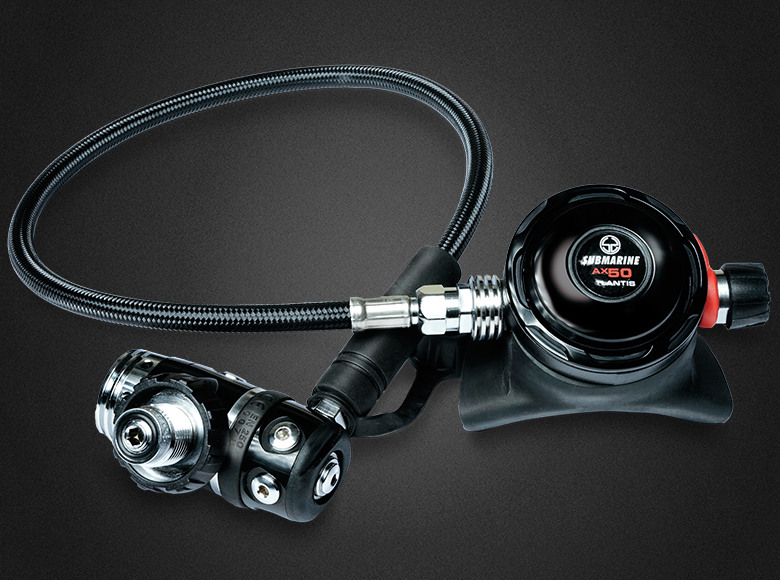

The Submarine Atlantis AX50 regulator is forerunner regulator, designed for utmost conditions.
Atlantis AX50 is a compact, gracious regulator suitable for diving in all stage including cold-water environments.
Manufactured with corrosion resistant materials for optimum air delivery and comfort during dive. It’s deliver air at current ambient pressure upon demand.
Atlantis regulator is a high performance option for those technical divers.
Features:

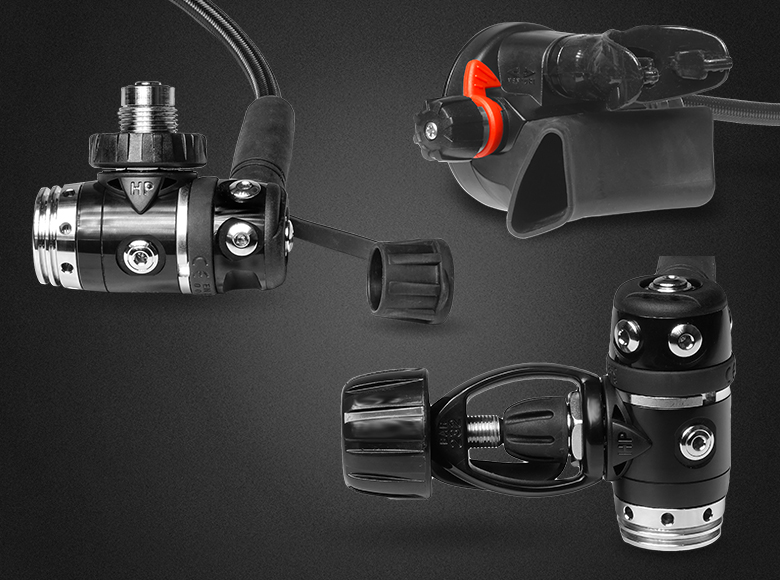

1st Stage:
- 1st Stage well laminated metal cover for preferable endurance to freezing in extreme environments
- Suitable for cold water use (<10°C / <50°F)
- 1st Stage color is black chromium coating
- Unrivaled over-balanced diaphragm design as the diver descends, the over-balancing invention warrant the medium pressure exhalation inward the hose to ascend at a quicker than ambient.
- 1st Stage with a 360 degree swiveling head
- 1st Stage has a four (4) 3/8“ UNF MP ports on side, one (1) 3/8” UNF LP ports on top and two (2) 7/16” UNF HP port
- Available in INT 230B and DIN230/300B configuration
2nd Stage:
- High grade front cover in black color anodized aluminum and adjustable purge button
- Advanced performance balanced second stage
- Orthodontic mouthpiece manufactured from high quality silicone
- Integrated Venturi lever is easy to use
- Easy to use switching on sensitivity control knob keeps the diver in control
- Extensive exhalation valve for escalated ease breathing
- Flexile Braided MP hose
- Heat Exchanger for freezing resistance
- Durable wide exhaust tee in flexible elastomer material to provides excellent bubble diversion
Technical Datasheet
